5th Axis Multiposition Rock Lock Bases

Set up your 3 axis machining center with the most versatile zero point system ever!


  • Rock Lock bases allow for quick changeover of fixtures & vices with up to 95% reduction of setup times.

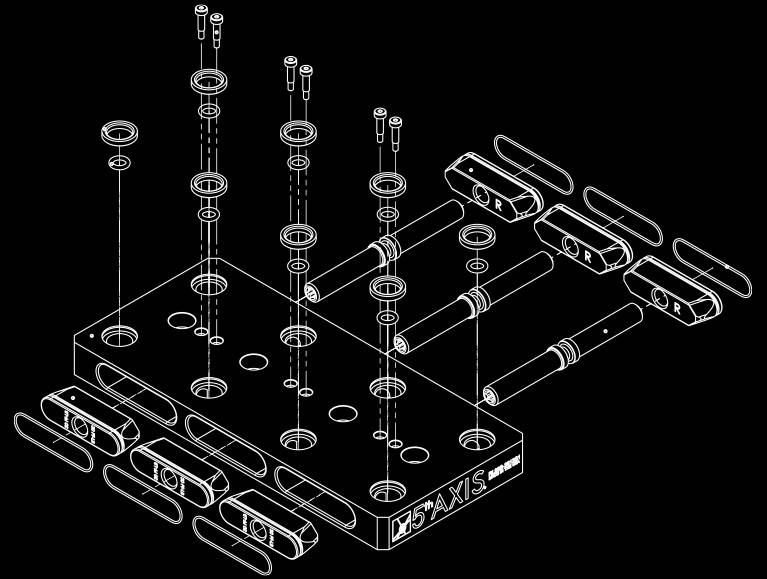

  • Patented free float design ensures equal force on all 4 pull studs guaranteeing repeatability of less than 8 microns.
  • Can be adapted to any machine vice with a 5th Axis pull studs.


Compatible Components for Rock Lock Bases

X-SERIES SELF-CENTERING VISES

Simple dovetail / tooth design.

No need for stamping

96MM tOP tOOLING

Large range to suit any type of production.

double station vises

Get more parts from your machine.


Part Code

Mounting

Dimensions

Drawing

Price

RL96A-3613S0

Undrilled (Drill your own Holes)

156mm x 338mm x 30mm

$2478
$1699

RL96A-3613S1

2 x M12, 96mm PCD
2 x M12, 250mm PCD

156mm x 338mm x 30mm

$2478
$1699

RL96A-3613S2

4 x M12, 80mm apart

156mm x 338mm x 30mm

$2478
$1699

RL96A-3613S3

4 x M12, 100mm apart

156mm x 338mm x 30mm

$2478
$1699


Terms & Conditions

Prices Valid until 30/09/2022

All prices are exclusive of GST & Freight
