96mm RockLock Top Workholding

96mm RockLock Dovetail Fixtures

R96-DM12

Size: 125.73mm x 125.73mm x 67.4mm

Fixture: DM12

Stock: Under 25mm

R96-2DM12

Size: 125.73mm x 125.73mm x 67.4mm

Fixture: 2x DM12

Stock: Under 25mm

R96-DM25

Size: 125.73mm x 125.73mm x 75.4mm

Fixture: DM25

Stock: Under 75mm

R96-P12DM12

Size: 125.73mm x 125.73mm x 133.5mm

Fixture: 12x DM12

Stock: Under 25mm

R96-P4DM25

Size: Ø152.4mm x 64.9mm

Fixture: 4x DM25

Stock: Under 75mm

R96-DM50

Size: 125.73mm x 125.73mm x 76.4mm

Fixture: DM50

Stock: 50mm and above

96mm RockLock Self-Centering Vises

R96-V75100X

Size: 125mm x 125.73mm x 87.88mm

Vise: V75100X

Vise Overall Clamping Range: 0 – 76.3mm

R96-2V75100X

Size: 150mm x 176.53mm x 78.2mm

Vise: 2x V75100X

Vise Overall Clamping Range: N/A

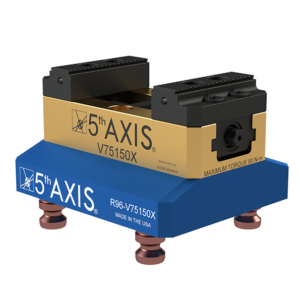

R96-V75150X

Size: 125.73mm x 151.13mm x 87.88mm

Vise: V75150X

Vise Overall Clamping Range: 0 – 128.8mm

R96-2V75150X

Size: 150mm x 176.53mm x 78.2mm

Vise: 2x V75150X

Vise Overall Clamping Range: N/A

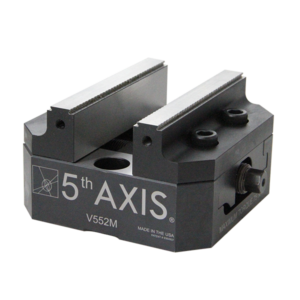

V552M

Size: 125.7mm x 127mm x 73.6mm

Jaw Width: 125.7mm

Clamping Force: 20.0 kN @ 75 Nm

Max Torque: 75 Nm

Forward Clamping Range: 0 – 56.9mm

Reverse Clamping Range: 77.8mm – 128.3mm

V562M

Size: 125.7mm x 152.4mm x 73.6mm

Jaw Width: 125.7mm

Clamping Force: 20.0 kN @ 75 Nm

Max Torque: 75 Nm

Forward Clamping Range: 0 – 82.3mm

Reverse Clamping Range: 77.7mm – 153.6mm

V510M

Size: 125.7mm x 152.4mm x 73.6mm

Jaw Width: 126mm

Clamping Force: 20.0 kK @ 75 Nm

Max Torque: 75 Nm

Forward Clamping Range: 0 – 183.9mm

Reverse Clamping Range: 72.6mm – 254.8mm

V6105M

Size: 150mm x 250mm x 94.1mm

Jaw Width: 150mm

Clamping Force: 26.7 kN @ 100 Nm

Max Torque: 100 Nm

Forward Clamping Range: 0 – 155.4mm

Reverse Clamping Range: 93.6mm – 243.3mm

96mm RockLock Double Station Vise with Master Hard Jaws

R96-DV75150X-J1

Size: 75mm x 150mm x 56mm

Jaw Type: Hardened Steel 3 Piece Master Jaw Set with 2” Center and Serrated / 45° Dovetail

Jaw Width: 75mm

Clamping Force: 13.5 kN @ 60 Nm

Max Torque: 60 Nm

Forward Clamping Range: 0 – 37.02mm

Reverse Clamping Range: 17.26mm – 55.02mm

Single Station Forward Clamping Range: N/A

Single Station Reverse Clamping Range: N/A

R96-2DV75150X-J1

Size: 75mm x 150mm x 56mm

Jaw Type: Hardened Steel 3 Piece Master Jaw Set with 2” Center and Serrated / 45° Dovetail

Jaw Width: 75mm

Clamping Force: 13.5 kN @ 60 Nm

Max Torque: 60 Nm

Forward Clamping Range (per vise): 0 – 37.02mm

Reverse Clamping Range (per vise): 17.26mm – 55.02mm

Single Station Forward Clamping Range: N/A

Single Station Reverse Clamping Range: N/A

DV56-J1

Size: 125.7mm x 152.4mm x 72.9mm

Jaw Type: Hardened Steel 3 Piece Master Jaw Set with 2” Center and Serrated / 45° Dovetail

Jaw Width: 125.7mmc

Clamping Force: 20.0 kN @ 75 Nm

Max Torque: 75 Nm

Forward Clamping Range: 0 – 28.5mm

Reverse Clamping Range: 31.0mm – 64.2mm

Single Station Forward Clamping Range: 0 – 75.9mm

Single Station Reverse Clamping Range: 56.8mm – 147.3mm

DV510-J1

Size: 125.7mm x 258.3mm x 73.4mm

Jaw Type: Hardened Steel 3 Piece Master Jaw Set with 2” Center and Serrated / 45° Dovetail

Jaw Width: 125.7mm

Clamping Force: 20.0 kN @ 75 Nm

Max Torque: 75 Nm

Forward Clamping Range: 0 – 66.7mm

Reverse Clamping Range: 30.9mm -102.3mm

Single Station Forward Clamping Range: 0 – 177.5mm

Single Station Reverse Clamping Range: 56.8mm – 248.7mmc

DV510-J4

Size: 125.7mm x 258.3mm x 73.4mm

Jaw Type: Hardened Steel 3 Piece Master Jaw Set with 1” Center and Serrated / 45° Dovetail

Jaw Width: 125.7mm

Clamping Force: 20.0 kN @ 75 Nm

Max Torque: 75 Nm

Forward Clamping Range: 0 – 79.4mm

Reverse Clamping Range: 30.9mm – 115mm

Single Station Forward Clamping Range: 0 – 177.5mm

Single Station Reverse Clamping Range: 56.8mm – 248.7mm

96mm RockLock Double Station Vise with Master Hard Jaws

R96-DV75150X-J2

Size: 75mm x 150mm x 64.1mm

Jaw Type: 6061 Aluminum Machinable Jaw Set

Jaw Width: 75mm

Clamping Force: 13.5 kN @ 60 Nm

Max Torque: 60 Nm

R96-2DV75150X-J2

Size: 75mm x 150mm x 64.1mm

Jaw Type: 6061 Aluminum Machinable Jaw Set

Jaw Width: 75mm

Clamping Force: 13.5 kN @ 60 Nm

Max Torque: 60 Nm

DV56-J2

Size: 125.7mm x 152.4mm x 89mm

Jaw Type: 6061 Aluminum Machinable Jaw Set

Jaw Width: 125.7mm

Clamping Force: 20.0 kN @ 75 Nm

Max Torque: 75 Nm

DV510-J2

Size: 125.7mm x 258.3mm x 88.5mm

Jaw Type: 6061 Aluminum Machinable Jaw Set

Jaw Width: 125.7mm

Clamping Force: 20.0 kN @ 75 Nm

Max Torque: 75 Nm

96mm RockLock Double Station Vise with Master Hard Jaws

R96-DV75150X-J3

Size: 75mm x 150mm x 64.1mm

Jaw Type: 1018 Steel Machinable Jaw Set

Jaw Width: 75mm

Clamping Force: 13.5 kN @ 60 Nm

Max Torque: 60 Nm

R96-2DV75150X-J3

Size: 75mm x 150mm x 64.1mm

Jaw Type: 1018 Steel Machinable Jaw Set

Jaw Width: 75mm

Clamping Force: 13.5 kN @ 60 Nm

Max Torque: 60 Nm

DV56-J3

Size: 125.7mm x 152.4mm x 89mm

Jaw Type: 1018 Steel Machinable Jaw Set

Jaw Width: 125.7mm

Clamping Force: 20.0 kN @ 75 Nm

Max Torque: 75 Nm

DV510-J3

Size: 125.7mm x 258.3mm x 88.5mm

Jaw Type: 1018 Steel Machinable Jaw Set

Jaw Width: 125.7mm

Clamping Force: 20.0 kN @ 75 Nm

Max Torque: 75 Nm

96mm RockLock Double Station Vise with Master Hard Jaws

R96-CER40

Size: 4.95” x 4.95” x 3.2”

Utilizes Standard ER40 Collet Nut
